Why does dielectric decrease electric field?

A dielectric material gets polarized when it placed in an electric field. The field produce due to the polarization of material minimize the effect of external field. Hence, the electric field inside a dielectric decreases when it is placed in an external electric field.

Similarly, it is asked, how does dielectric decrease electric field?

An applied electric field will polarize the material by orienting the dipole moments of polar molecules. The dielectric must be a good electric insulator so as to minimize any DC leakage current through a capacitor. The presence of the dielectric decreases the electric field produced by a given charge density.

Additionally, what is the electric field in the dielectric? Electric Fields in Dielectrics. Any kind of matter is full of positive and negative electric charges. In a dielectric, these charges cannot move separately from each other through any macroscopic distance, so when an electric field is applied there is no net electric current.

Likewise, people ask, what happens to electric field when dielectric is inserted?

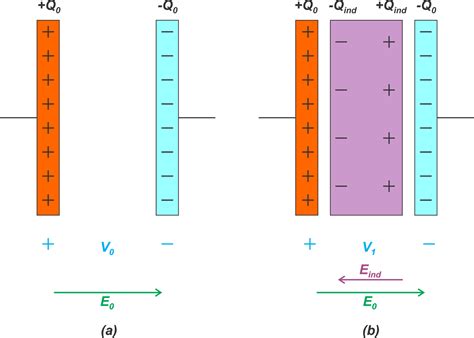

Dielectrics (cont'd)Thus, when a dielectric is inserted in a charged capacitor (not connected to a power supply), the electric field would be decreased and so would the voltage (= Ed). Since C = Q/V, this means that C must be bigger when a dielectric is inserted.

Why the electric field inside the dielectric is smaller than electric field in air between the plates?

The electric field inside the dielectric is smaller than the electric field in the air between the plates because the voltage is expanding. In this way if every other variable stays consistent and voltage is expanding, the electric field must therapist to keep up the capacitance measured.

What makes a good dielectric?

All dielectric materials are insulators, but a good dielectric is one which is easily polarized. The amount of polarization which occurs when a certain voltage is applied to an object influences the amount of electrical energy that is stored in the electric field.

What is the best dielectric material?

In practice, most dielectric materials are solid. Examples include porcelain (ceramic), mica, glass, plastics, and the oxides of various metals. Some liquids and gases can serve as good dielectric materials. Dry air is an excellent dielectric, and is used in variable capacitors and some types of transmission lines.

Is water a good dielectric material?

Pure water is a very effective dielectric at high frequencies, though to keep it pure normally involves pumping it round an ion-exchange resin to remove the ions dissolving into it from the enclosure. It also has a very high breakdown voltage compared to air (50 million volts per meter or more).

Why dielectric is used in capacitor?

Introducing a dielectric into a capacitor decreases the electric field, which decreases the voltage, which increases the capacitance. A capacitor with a dielectric stores the same charge as one without a dielectric, but at a lower voltage. Therefore a capacitor with a dielectric in it is more effective.

Why insulators are called dielectric?

Dielectrics are materials that don't allow current to flow. They are more often called insulators because they are the exact opposite of conductors. But usually when people call insulators “dielectrics,” it's because they want to draw attention to a special property shared by all insulators: polarizability.

How does a dielectric affect voltage?

Introducing a dielectric into a capacitor decreases the electric field, which decreases the voltage, which increases the capacitance. A capacitor with a dielectric stores the same charge as one without a dielectric, but at a lower voltage. Voltage and capacitance are inversely proportional when charge is constant.

What is the electric field in a capacitor?

In a simple parallel-plate capacitor, a voltage applied between two conductive plates creates a uniform electric field between those plates. The electric field strength in a capacitor is directly proportional to the voltage applied and inversely proportional to the distance between the plates.

Why does dielectric constant increase with temperature?

For materials that possess permanent dipoles, there is a significant variation of the dielectric constant with temperature. This is due to the effect of heat on orientational polarisation. However, this does not mean that the dielectric constant will increase continually as temperature is lowered.

What happens if dielectric is removed?

When the dielectric is removed, the charge on the plates, Q, does not change. The capacitance C decreases, so the energy must increase. If the plates of the capacitor are connected to an ideal battery, then the voltage, not the charge, would remain constant, and the energy stored would decrease.

What is the formula of dielectric constant?

The dielectric constant is generally defined to be κ=E0E κ = E 0 E , or the ratio of the electric field in a vacuum to that in the dielectric material, and is intimately related to the polarizability of the material.

Does a dielectric increase stored energy?

The capacitor is charged, and isolated so the charge on the plates is constant. Inserting a dielectric increases the capacitance, reducing the energy stored in the capacitor.

Does electric field change with dielectric?

Electric field is the gradient of electric potential (better known as voltage). Capacitance is the ratio of charge to voltage. Introducing a dielectric into a capacitor decreases the electric field, which decreases the voltage, which increases the capacitance.

Is water a dielectric?

Water comes out to be dielectric because of the dielectric polarization (it's an electric dipole and is a highly polar molecule & even rotates - aligning itself in field direction) associated with it.

What does a dielectric do?

A common example of a dielectric is the electrically insulating material between the metallic plates of a capacitor. The polarization of the dielectric by the applied electric field increases the capacitor's surface charge for the given electric field strength.

How charge is stored in a dielectric?

Adding a dielectric allows the capacitor to store more charge for a given potential difference. When a dielectric is inserted into a charged capacitor, the dielectric is polarized by the field. The electric field from the dielectric will partially cancel the electric field from the charge on the capacitor plates.

What is the formula of electric field?

the magnitude of the electric field (E) produced by a point charge with a charge of magnitude Q, at a point a distance r away from the point charge, is given by the equation E = kQ/r2, where k is a constant with a value of 8.99 x 109 N m2/C2.

Does adding a dielectric increase capacitance?

Introducing a dielectric into a capacitor decreases the electric field, which decreases the voltage, which increases the capacitance. A capacitor with a dielectric stores the same charge as one without a dielectric, but at a lower voltage. Therefore a capacitor with a dielectric in it is more effective.

Is paper a dielectric?

A dielectric material is an electrical insulator.

Dielectric Strength of Paper.

MaterialDielectric Constant κDielectric Strength, (kV/mm)
Paper3.716

What happens when an insulator is placed in an electric field?

The insulator is called a dielectric. The dielectic placed in a static electric field will make the field weaker. Also, they are bound, cannot move freely along the electric field - this is how a dielectric differs from a conductor. But these charges can shift by a little (while still being bound).

What do you mean by dielectric breakdown?

Electrical breakdown or dielectric breakdown is when current flows through an electrical insulator when the voltage applied across it exceeds the breakdown voltage. This results in the insulator becoming electrically conductive.

What is a dielectric example?

A dielectric material is a substance that is a poor conductor of electricity, but an efficient supporter of electrostatic field s. In practice, most dielectric materials are solid. Examples include porcelain (ceramic), mica, glass, plastics, and the oxides of various metals.

What is electric polarization of dielectric?

Electric polarization, slight relative shift of positive and negative electric charge in opposite directions within an insulator, or dielectric, induced by an external electric field. This slight separation of charge makes one side of the atom somewhat positive and the opposite side somewhat negative.

What is dielectric Polarisation?

Dielectric polarization is the term given to describe the behavior of a material when an external electric field is applied on it. A simple picture can be made using a capacitor as an example. The figure below shows an example of a dielectric material in between two conducting parallel plates.

What is difference between insulator and dielectric?

The material which stores the electrical energy in an electric field is known as the dielectric material, whereas the material which blocks the flow of electrons is known as the insulators. The dielectric material stores the electric charges, whereas the insulator block the electric charges.

How does dielectric breakdown occur?

Dielectric breakdown occurs when the electrical field becomes high enough to cause some portion of a dielectric to abruptly switch from being an electrical insulator to a partial conductor. Dielectric breakdown can occur along the interface between two dielectrics or inside a single dielectric.

Is copper a dielectric?

When copper is use as a dielectric, it cannot store energy because copper offers zero resistance to electric current. i.e current = infinite, Voltage = 0V, E = V/d = 0V/m. The relative permittivity of Good conductors such as copper, silver, Gold is considered = 1 for calculations.

How does dielectric affect potential difference?

The electric field from the polarized dielectric will partially cancel the electric field from the charge on the capacitor plates. The net effect of the dielectric is to increase the amount of charge a capacitor can store for a given potential difference.

What does a higher dielectric constant mean?

Dielectric constant (ε): A measure of a substance's ability to insulate charges from each other. Taken as a measure of solvent polarity, higher ε means higher polarity, and greater ability to stabilize charges.

Is air a dielectric?

A dielectric material is a substance that is a poor conductor of electricity, but an efficient supporter of electrostatic field s. Some liquids and gases can serve as good dielectric materials. Dry air is an excellent dielectric, and is used in variable capacitors and some types of transmission lines.

What is the direction of the electric field in a charged parallel plate capacitor?

The more realistic explanation is that essentially all of the charge on each plate migrates to the inside surface. This charge, of area density σ, is producing an electric field in only one direction, which will accordingly have strength σϵ0.

What are the types of dielectric materials?

Types of Dielectric Materials
Some of the examples of solid dielectric materials are ceramics, paper, mica, glass etc. Liquid dielectric materials are distilled water, transformer oil etc. Gas dielectrics are nitrogen, dry air, helium, oxides of various metals etc. Perfect vacuum is also a dielectric.

What would happen in a capacitor if the dielectric was not made out of an insulator?

Insulators ARE used in capacitors. The greater the dielectric constant (how good of an insulator it is) of the gap material, the greater the capacitance. If you have no gap material, the air in between the plates acts as an insulator by impeding the flow of charge.

How does thickness of dielectric affect capacitance?

The electric field from the polarized dielectric will partially cancel the electric field from the charge on the capacitor plates. This decreases the net field inside the capacitor, and decreases the potential difference across the capacitor. The larger the dielectric constant, the more charge can be stored.
